原理   Principle

        本機是我公司根據染料等物料壓率后高水分狀固有的特性，設計出的新型改進型網帶式干燥機，一般熱源等放置于右側，工作時，物料先進入成形預熱機構，擠條造粒，同時也被脫去一部分水分，之后均勻分布在網帶上，干燥時，物料從網帶的上方和下方強制輸入熱風，使被干燥的每個粒子表面都成為受熱面，增大物料與熱風的接觸面積顯著增加導熱面積，使物料內部水份擴散。組合成的配合使其效率更高，節能性更好 。

Raw material to be dried will be spread onto the screen belt through suitable feeding mechanism. When drying, hot air will be forced to input to raw material from up and low screen belt, It makes the surface of every particulate become surface to be heated. The area to contact with hot air is increased and the heat conduct area is increased remarkably. The diffused distance of moisture in raw material is shortened.Therefore the effective drying operation can be carried out. Particularly it is suitable for drying raw material that has been preformed. The series drier has high stability and energy saving.

----------------------------------------------------------------------------------------------------------------

特點   Features

◎  可設定適宜的操作條件，根據通風方式相應的干燥狀態，可任意調節溫度，風量等操作條件。

◎  整個過程物料流量，使用溫度，終水份含量均可任意調節。

◎  物料在干燥裝置內，是靜止?fàn)顟B(tài)移動的，可幾乎不破壞產品的形狀，也無灰塵飛散。

◎  可使用各種傳送帶，根據干燥物料的不同，傳送帶除各種金屬絲網之外，也可用振動板。

◎  傳送帶可清洗，加熱室與干燥室分開，更便于清洗傳送網帶。

◎  根據要求，可在設備底板裝配清掃裝置，將少量掉于底板上的物料刮送到出料端。

◎  根據產量和物料水份不同，可選擇多臺設備串聯使用，以提高產量。

◎  The amount of air, temperature of heat, stay time of raw material can be adjusted in order to get the best effect.

◎  The whole process material flow, temperature, final moisture content can be adjusted.

◎  The raw material is relatively static in belt, and so the size and dust will be keeped.

◎  The belt's type will be choose, such as metal mesh or vibrating plate.

◎  The belt can be cleaned, because of the heating room is separated from drying room.

◎  According to requirements, the low plate can be equipped cleaning equipment to remove a little of aw materials to outlet.

◎  Production and water according to different materials, choose to use multiple devices in series, to increase production.

----------------------------------------------------------------------------------------------------------------

應用范圍   appl ication

◎  適用于顏料、染料等膏狀、糊狀物料預成形后的干燥。

◎  適用于高分子聚合物、氧化鐵、鐵酸鹽、氟石、醫藥品、調味料、瓊脂等的化學工業藥品、肥料、飼料等以及各種粒狀、片狀、纖維狀、蛋糕狀物料。

◎  For pigments, dyes, paste, paste pre-forming material after drying.

◎  It is suitable in drying for high number ator polymen, ferric oxide, fIuor, medicine,fIavoring, gIue, and other products, fertilizer, feed and so on.

----------------------------------------------------------------------------------------------------------------

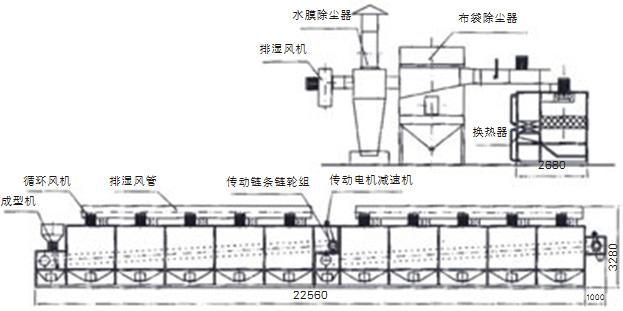

工藝流程   appl ication
